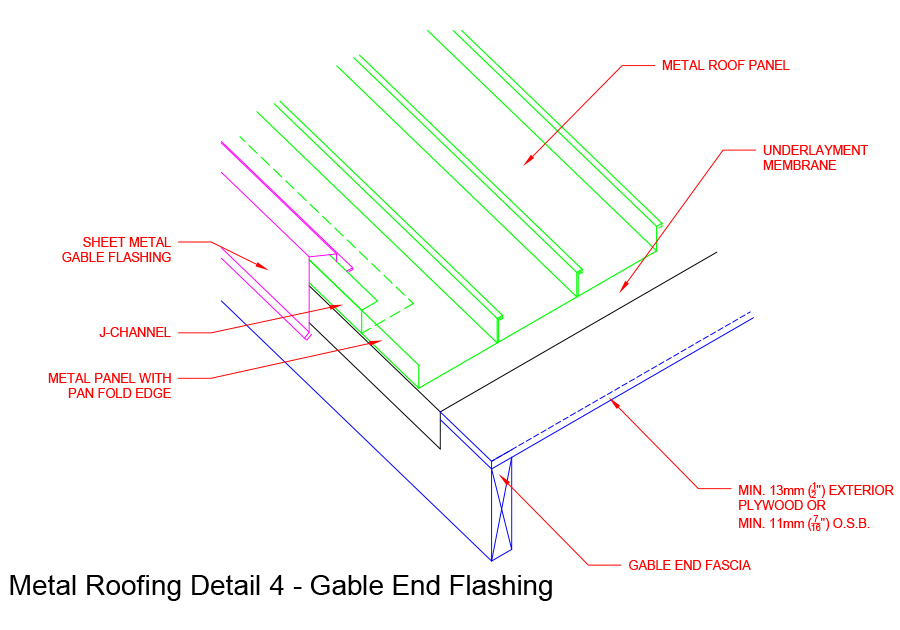

Architectural Standing Seam Details: Gable End Flashing

Architectural Standing Seam Details: Gable End Flashing

Scope of Roofing by Roofer

underlayment membrane

2

sheet metal gable flashing

3

J-channel

4

metal panel with pan fold edge

Suggested Detail by Others

a

accepted deck

b

gable end fascia
