MR Section 3: Architectural Standing Seam Roofing Details

It is impossible to illustrate every possible design scenario for sheet metal flashing details. The details illustrated by ARCA Warranty Ltd. are presented as suggested details only, incorporating sound roofing design principles.

ARCA Warranty Ltd. provides a no-charge evaluation and review service for roofing details not illustrated on the following plates. Designers are welcome to submit their roofing details to for review.

Architectural Standing Seam Detail Diagrams

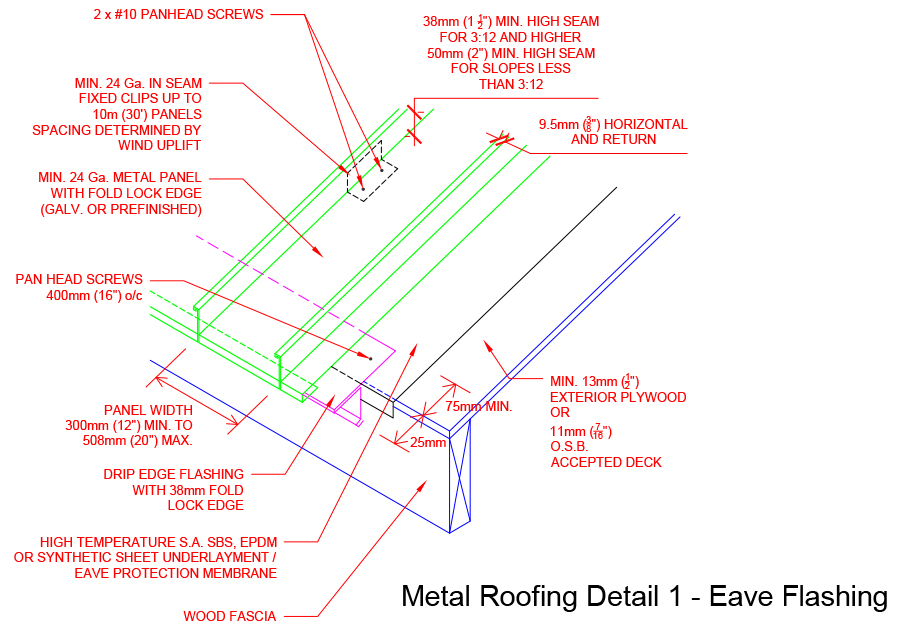

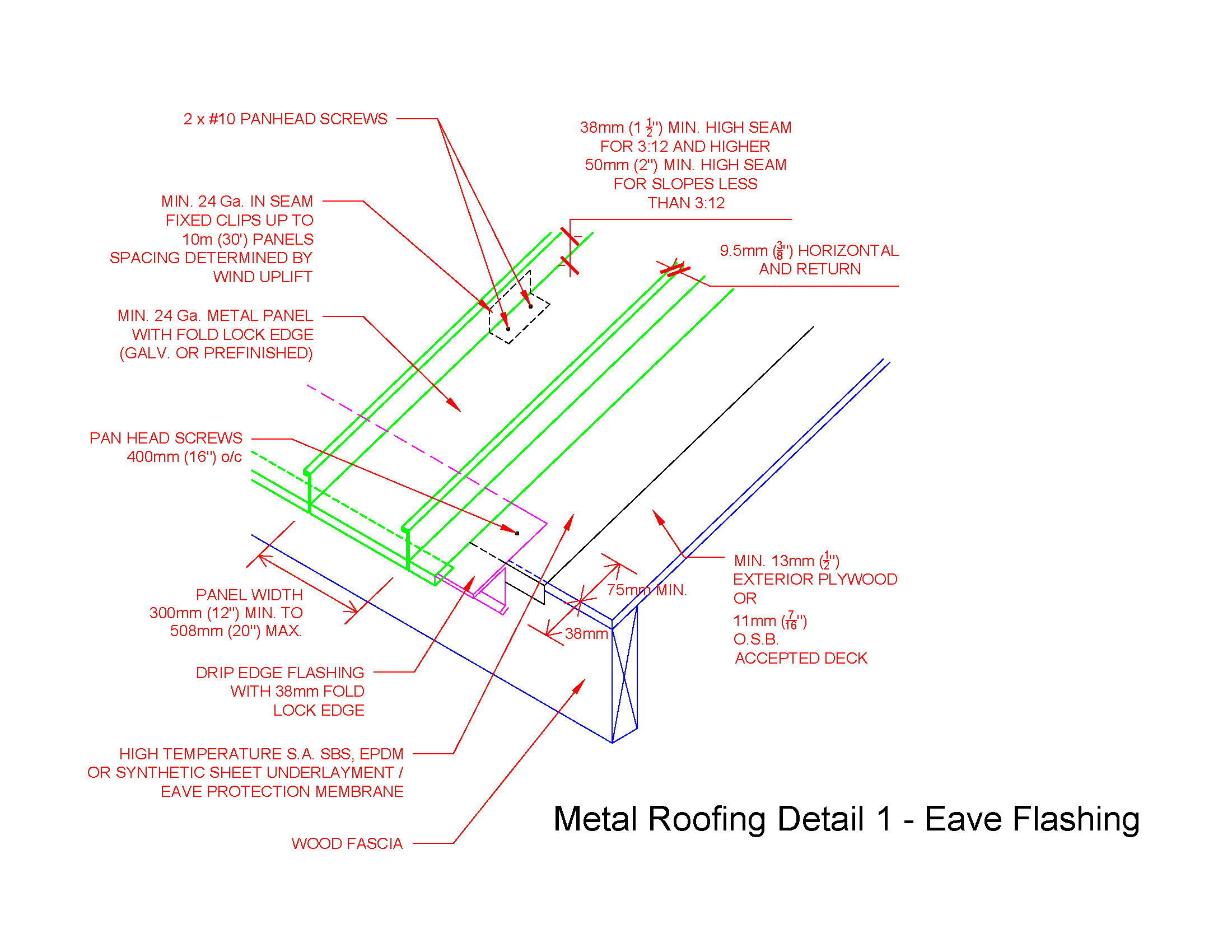

Architectural Standing Seam Details: Eave Flashing

Eave Flashing

Architectural Standing Seam Details: Alternate Eave Flashing

Alternate Eave Flashing

Architectural Standing Seam Details: Alternate Eave Flashing

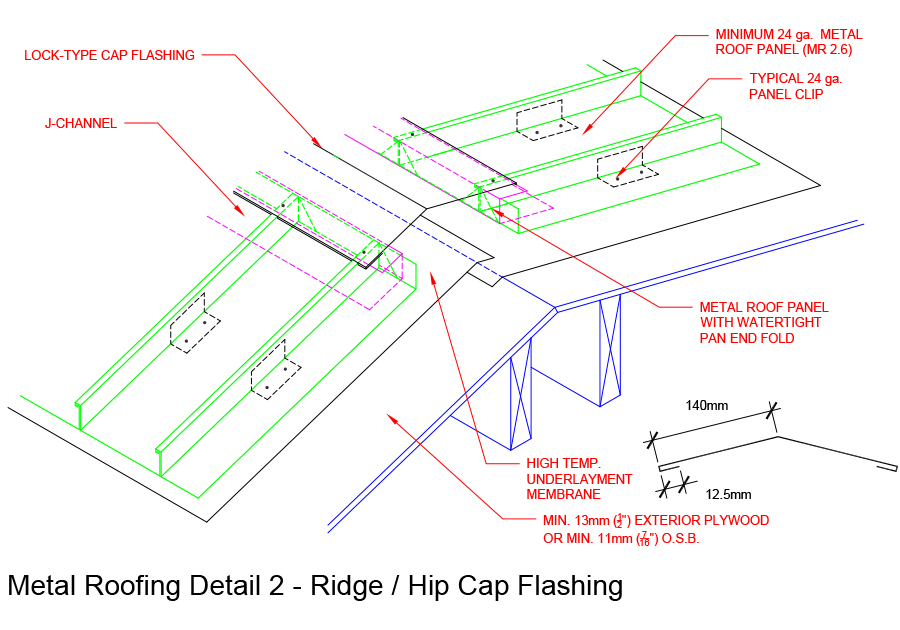

Ridge/Hip Cap Flashing

Architectural Standing Seam Details: Alternate Ridge/Hip Cap Flashing

Alternate Ridge/Hip Cap Flashing

Architectural Standing Seam Details: Valley Flashing

Valley Flashing

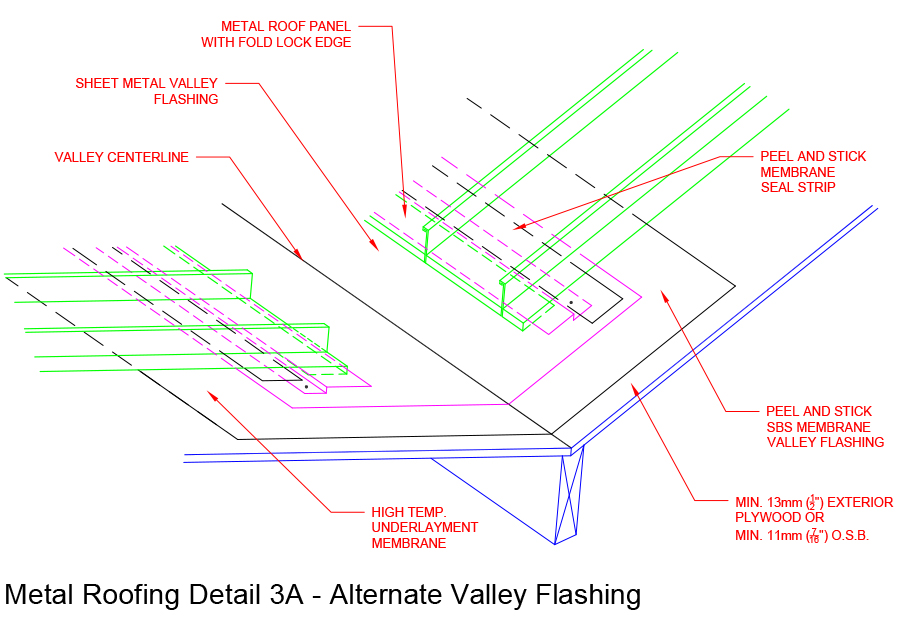

Architectural Standing Seam Details: Alternate Valley Flashing

Alternate Valley Flashing

Architectural Standing Seam Details: Gable End Flashing

Gable End Flashing

Architectural Standing Seam Details: Alternate Eave Flashing

Canopy Knee Flashing

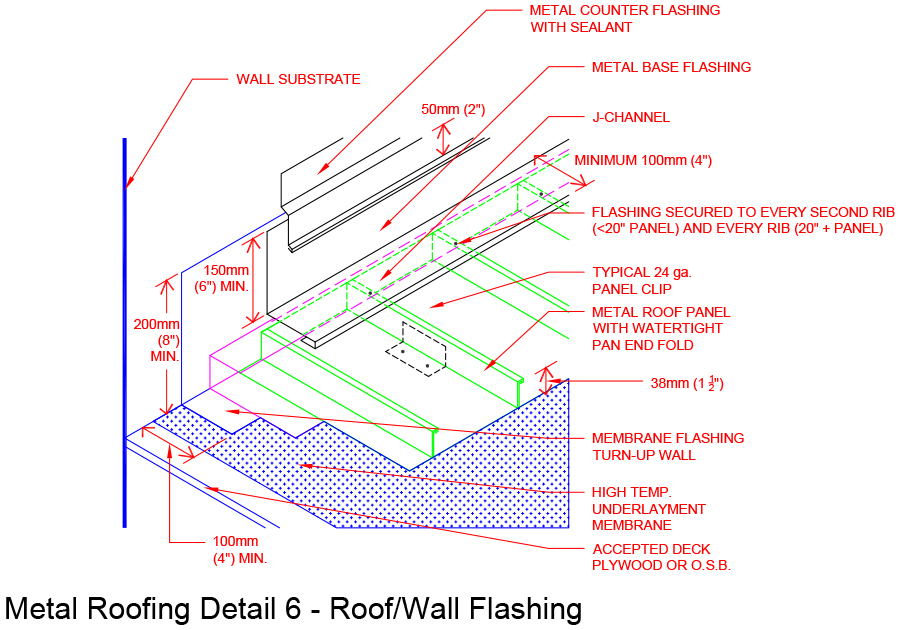

Architectural Standing Seam Details: Roof/Wall Flashing

Roof/Wall Flashing

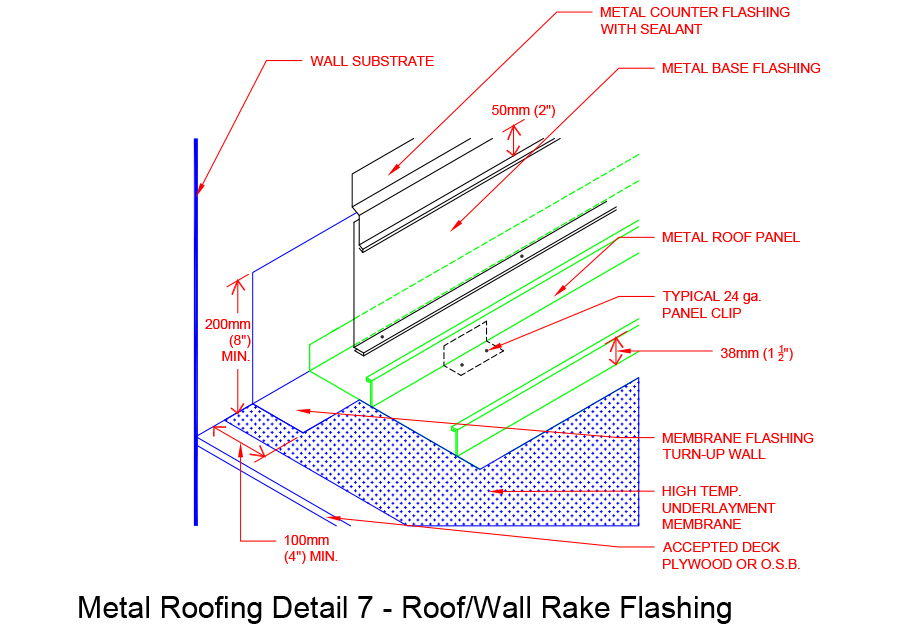

Architectural Standing Seam Details: Roof/Wall Rake Flashing

Roof/Wall Rake Flashing

Architectural Standing Seam Details: Roof Curb

Roof Curb

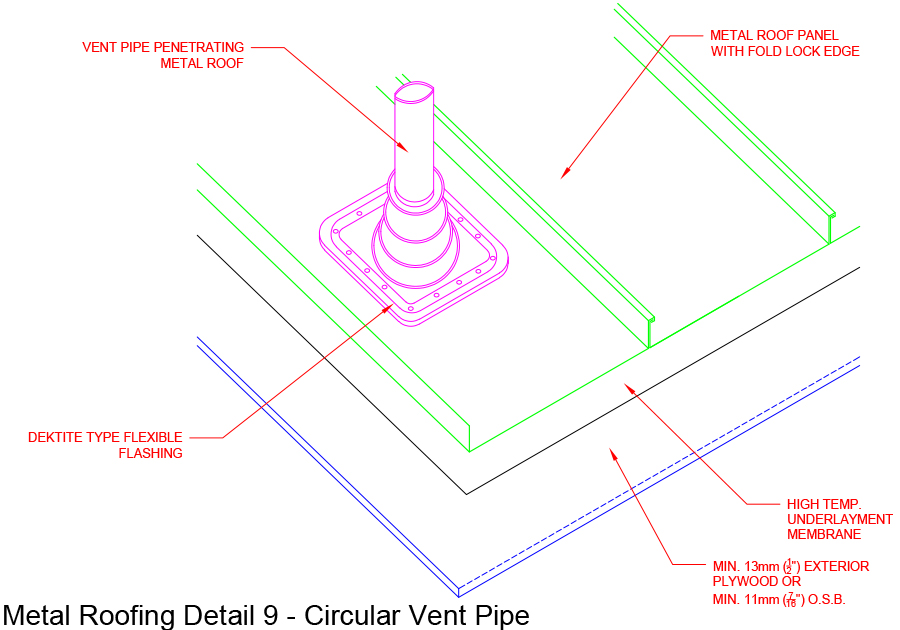

Architectural Standing Seam Details: Circular Vent Pipe

Circular Vent Pipe
