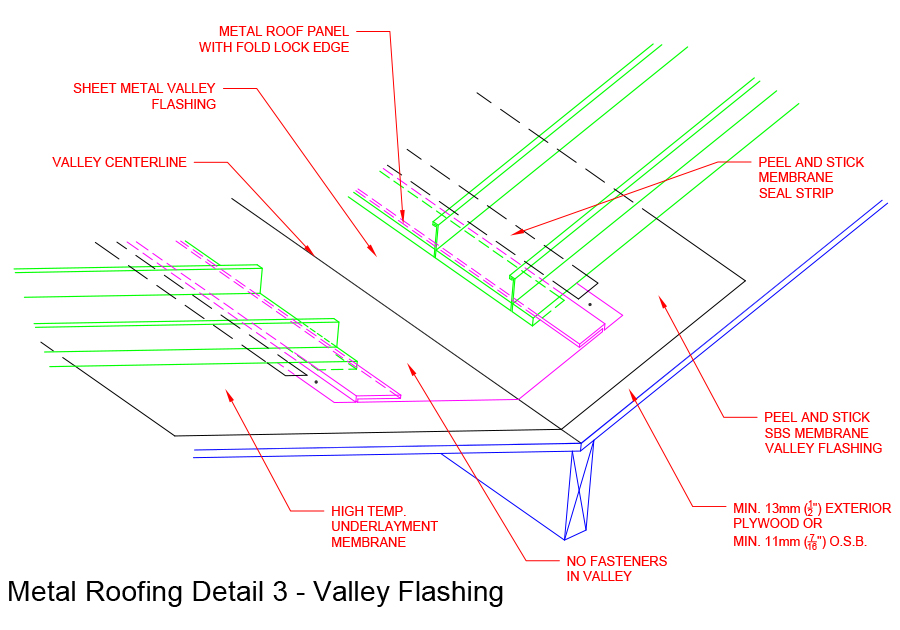

Architectural Standing Seam Details: Valley Flashing

Architectural Standing Seam Details: Valley Flashing

Scope of Roofing by Roofer

peel & stick SBS membrane valley flashing

2

sheet metal valley flashing

3

peel & stick SBS membrane seal strips

4

metal panel with fold lock edge

Suggested Detail by Others

a

accepted deck

b

structural member
